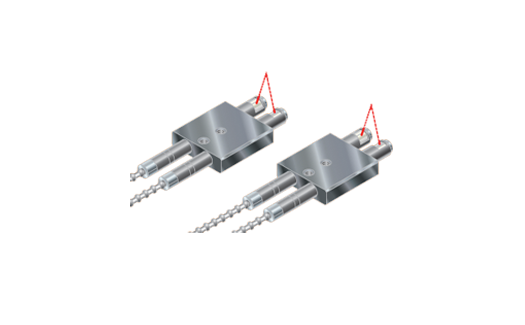

FT-H20-J20-S 耐热纤维
耐热光纤专为 -60°C 至 +350°C (-76°F 至 +662°F) 的高温环境而设计。规格Specifications table for model FT-H20-J20-SItemPerformance characteristicsSensing ModeThru-beam typeFiber TypeHeat-resistant (joint)Fiber Head DiaM4Fi
耐热光纤专为 -60°C 至 +350°C (-76°F 至 +662°F) 的高温环境而设计。规格Specifications table for model FT-H20-J20-SItemPerformance characteristicsSensing ModeThru-beam typeFiber TypeHeat-resistant (joint)Fiber Head DiaM4Fi
耐热光纤专为 -60°C 至 +350°C (-76°F 至 +662°F) 的高温环境而设计。
Item | Performance characteristics |
---|---|
Sensing Mode | Thru-beam type |
Fiber Type | Heat-resistant (joint) |
Fiber Head Dia | M4 |
Fiber Head Length | 23 mm |
With Sleeve | No |
Beam Direction | Top-view |
Beam Axis Dia. / Spot Diameter | dia. 1.2 mm |
Fiber Cable Length | 200 mm (Note) Fiber length (fixed-length) for heat-resistant fiber side. Fiber length for ordinary temperature side is 2 m 6.562 ft (free-cut) . |
Allowable Bending Radius | Heatresistant side R18 mm (Note) Bending durable fiber R4 mm R0.157 in or more for ordinary temperature side. |
Free-Cut | Available |
Mounting Lens | Available |
Applicable Lens | FX-LE1,FX-LE2,FX-SV1 |
Mounting Protective Tube | Not available |
Applications | Heat-resistant |
Environmental Resistance: Ambient Temperature (Max.) | 200 degrees |
Environmental Resistance: Ambient Temperature (Min.) | -60 degrees |
Sensing Range (STD) | 470 mm 18.504 in (FX-500 series) |
Sensing Range (HYPR) | 1,600 mm 62.992 in (FX-500 series) |
Sensing Range (U-LG) | 1,000 mm 39.370 in (FX-500 series) |
Sensing Range (Long) | 790 mm 31.102 in (FX-500 series) |
Sensing Range (Fast) | 300 mm 11.811 in (FX-500 series) |
Sensing Range (H-SP) | 90 mm 3.543 in (FX-500 series) |
