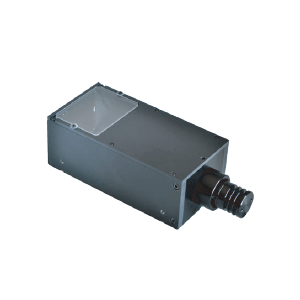

KT-MFU-54X40-HLV 晰写速CCS光源灯箱MFU系列
外观尺寸W 66 mm x D 131 to 166 mm x H 48 mm外壳材质Aluminum alloy, Steel sheet, Resin使用温湿度Temperature: 0 to 40 ℃, Humidity: 20 % to 85 %RH (with no condensation)保存温湿度Temperature: -20 to 60 ℃, Humidity: 20 % t
| 外观尺寸 | W 66 mm x D 131 to 166 mm x H 48 mm |
|---|---|
| 外壳材质 | Aluminum alloy, Steel sheet, Resin |
| 使用温湿度 | Temperature: 0 to 40 ℃, Humidity: 20 % to 85 %RH (with no condensation) |
| 保存温湿度 | Temperature: -20 to 60 ℃, Humidity: 20 % to 85 %RH (with no condensation) |
| 适合规格 | RoHS |
| 重量 | 400 g max. |
| 附属品 | Aperture (φ0.5 mm) x 1, Aperture (φ1.0 mm) x 1, Aperture (φ2.0 mm) x 1, Set of screws (M3 x 3 mm black) x 3, M3 hexagonal wrench x 1 *The φ1.0 aperture is fitted with a diffusion plate at the time of factory shipment. *Replacing with one of the additional apertures supplied allows the light quantity (high / low) and light distribution (wide / narrow) to be changed. |
| 备注 | Spot lighting equipment for light units is sold separately. Compatible Lights : HLV3-22RD-1C / HLV3-22SW-1C / HLV3-22BL-1C / HLV3-22GR-1C, HLV3-22RD-2C / HLV3-22SW-2C / HLV3-22BL-2C / HLV3-22GR-2C, HLV3-22RD-4C / HLV3-22SW-4C / HLV3-22BL-4C / HLV3-22GR-4C Please use the recommended light units for each HLV product. |
