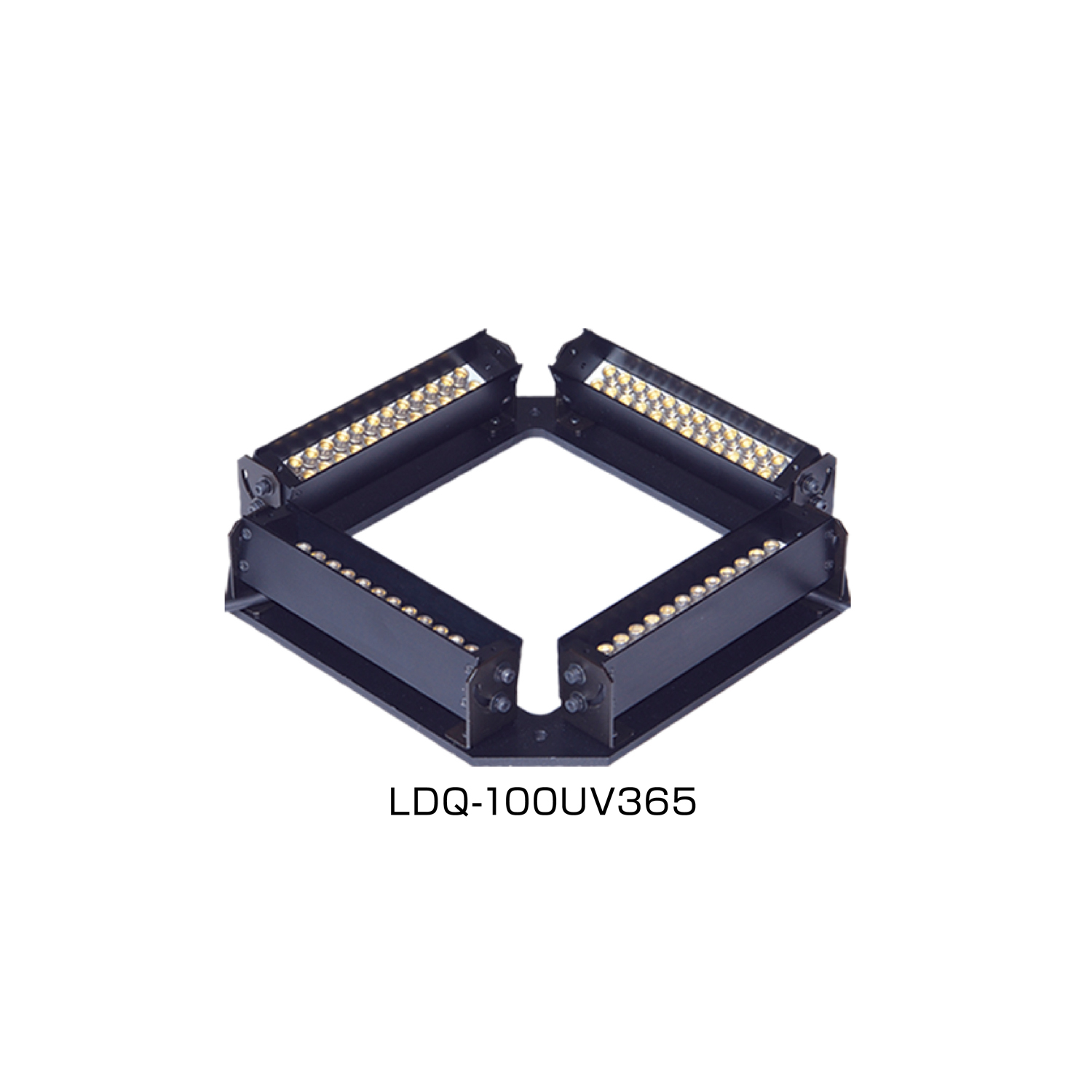

LDQ-100UV365晰写速CCS图像处理光源UV系列
产品详细信息LED发光颜色Ultraviolet峰值发光波长365 nm typ.外观尺寸W 108 mm x D 108 mm x H 30.2 mm输入电压24 VDC消耗功率3.1 W (Earlier than July 2014) / 2.3 W (After July 2014)极性, 信号1: (+), 2: NC, 3: (-)线缆长度300 mm外壳材质Aluminum allo
产品详细信息
| LED发光颜色 | Ultraviolet |
|---|---|
| 峰值发光波长 | 365 nm typ. |
| 外观尺寸 | W 108 mm x D 108 mm x H 30.2 mm |
| 输入电压 | 24 VDC |
| 消耗功率 | 3.1 W (Earlier than July 2014) / 2.3 W (After July 2014) |
| 极性, 信号 | 1: (+), 2: NC, 3: (-) |
| 线缆长度 | 300 mm |
| 外壳材质 | Aluminum alloy |
| 使用温湿度 | Temperature: 0 to 40 ℃, Humidity: 20 % to 85 %RH (with no condensation) |
| 保存温湿度 | Temperature: -20 to 60 ℃, Humidity: 20 % to 85 %RH (with no condensation) |
| 冷却方式 | Natural air-cooling |
| 输入端口 | SMR-03V-B x 4 |
| 适合规格 | CE, UKCA, RoHS, IEC 62471（Exempt） |
| 重量 | 330 g max. |
| 附属品 | User Manual, Radiation aperture seal, UV DANGER seal |
| 注意事项 | * UV radiation is very harmful to the naked eye. * To avoid direct exposure to ultraviolet radiation, all workers around this product must use protective equipment. * Make known to all personnel concerned the risk of ultraviolet radiation. * Take sufficient safety precautions when handling the machinery and devices incorporating this product. * Please inquire if you would like to use in combination with a Strobe Control Unit (overdrive type). |
